12. Anti wrinkle series

HIFU remove wrinkles and skin elasticity machine

Introduction for single point HFU

Working principle

Single point HFU helps to remove wrinkles,skin elasticity,shaping and the form the collagen.Wave transmits the energy between 65 degrees to 72 degrees to skin SMAS layer.The face probe covers 1.5,3,0,4.5mm, breast probe with4.5mm and body probe between 8.0mm to 13.0mm,which can make thermal coagulation, skin contraction and regenerated collagen Proteins. In addition, single point HFU can be used to physically treat obesity and the chest by melting fat layers (depth 8mm~13mm).Using the probe by rubbing and circling to make the operation simple and convenient.

Application
A. Improve skin elasticity, remove wrinkles and compact facial contours;

B. Rab mentions tightening the cheek skin;

C. Eliminate wrinkles around the forehead, eyes, and lips; D. Eliminate neck lines and prevent aging of the neck.

E. Improve chin lines, reduce puppet patterns, facial expressions, natural agility;

F. Tighten the skin tissue on the forehead and enhance eyebrow lines;

G. Improve the skin, make the skin delicate, smooth, elastic and shiny;

H. With hyaluronic acid, collagen injection beauty, can improve more skin problems.

Advantages

1.The best temperature protection

The temperature of Ulthera is about 65°C-70°C, which is the most suitable temperature for effective denaturation of collagen. With focused ultrasound, there is no need to heat the skin at all and it will not damage the skin.

2.The most accurate depth

Ulthera's energy is precisely focused on the depths of the tissue and has no effect on the surface of the skin. On the one hand, it has a deeper effect on the skin to make the effect  ideal. On the other hand, it can better protect the surface skin.

3.Technical positioning, accurate and reliable. Ulthera uses the most accurate patented “positioning indicator line” to accurately locate the energy point, and the energy is controllable, accurate, safe,and more comprehensive.

4.Safe and non-invasive

Ulthera is used by over 100,000 people in the world. Li Qiutao experts introduce that it is only need about 40 minutes for a treatment. There is no pain in the treatment process, no recovery period is required, and the results are immediately dominant and gradual.

5:A variety of treatment probes work on different parts

Ulthera can choose different treatment probes according to different skin types and depths. It can work on various parts of the skin, such as face, neck, eyes, abdomen, arms, etc., all have very good results

Introduction for HIFU

HFU focuses the ultrasound on a single point to generate high energy,acting on the superficial SMAS to get the purpose of remove wrinkles and skin elasticity.

Application

A.Pulling mention tightening cheek skin and remove wrinkles

B.Improve chin line,reduce puppet pattern

C.Improve skin texture,make skin delicate and shiny

D.Remove neck lines to prevent nacking

E.Improve skin elasticity and contour firming

F.Tighten the skin of the forehead and enhance the line of eyebrows

G.Eliminates forehead,wrinkles around eyes and lips.

Advantages

The best temperature protection

The polar pinhole skin temperature is around 65 degree to 70 degree,which is the most suitable temperature for effective degeneration of collagen.With focused ultrasound,there is no need to heat the skin at all and it will not cause damage to the skin.

2.The most accurate depth

The power of the polar corda skin is precisely focused in the depths of the tissue and has no effect on the surface of the skin.On the one hand,it has a deeper effect on the skin and the effect is ideal.On the other hand,it protects the surface  skin better.

3.Technical positioning,accurate and reliable

Polar Line Bo Lapi adopts the most accurate and patented positioning indicator line,which can accurately locate the energy deposition point,and the energy is controllable,delicate and accurate safer and more secure and the effect is immediately dominant and gradual.

5. A variety of treatment probes, multi-site effect

Polar Line Pora skin can choose different treatment probes according to different skin types and depths. It can act on various parts of the skin, such as face, neck, eyes, abdomen, arms,etc., all have good results.

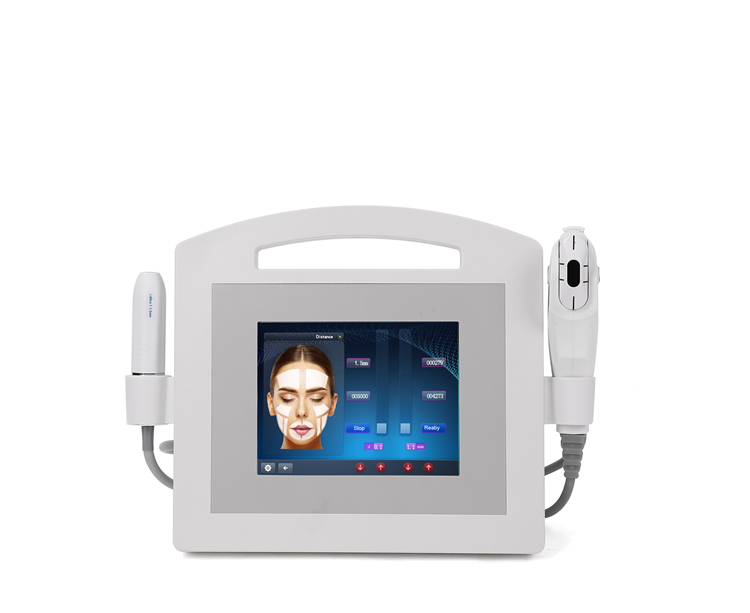

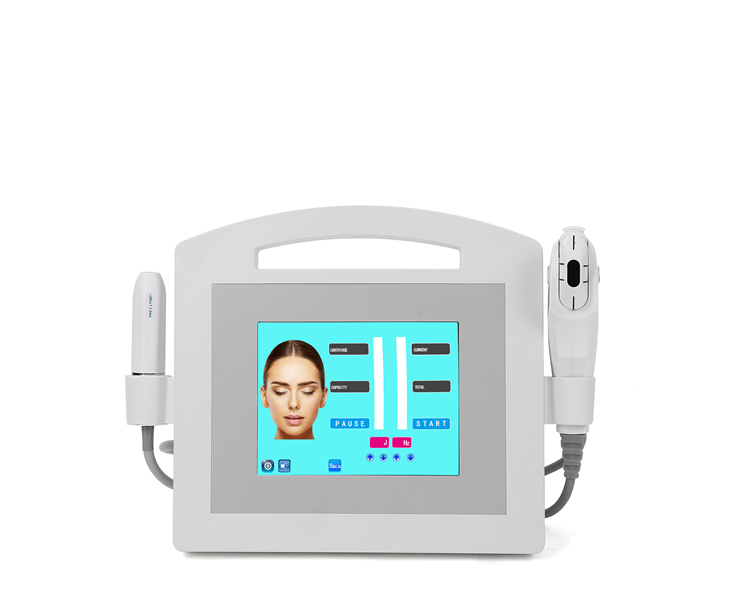

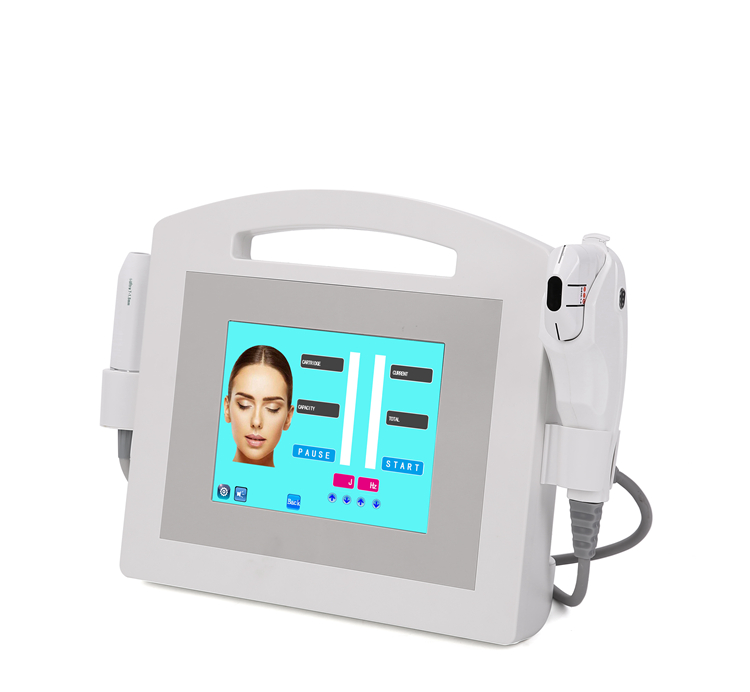

Product Show

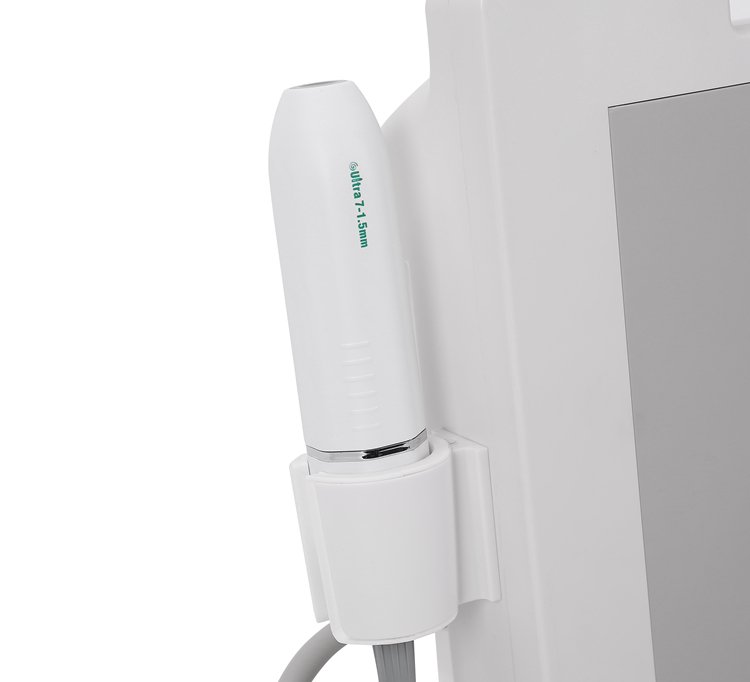

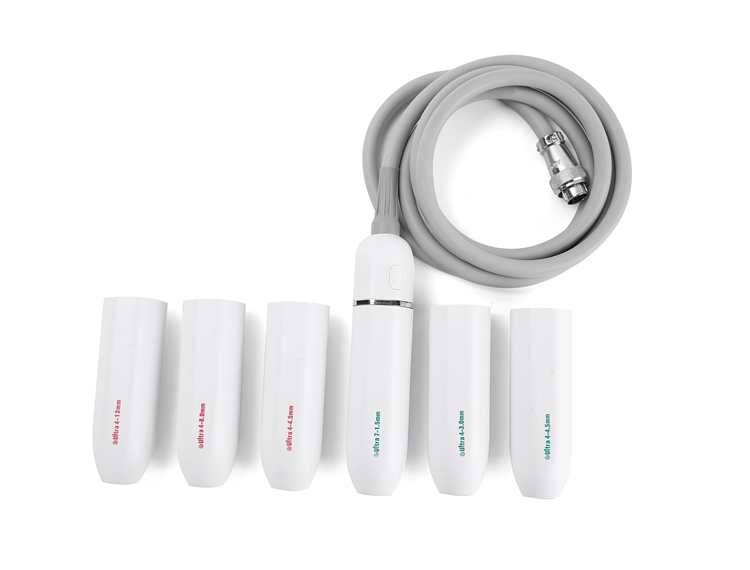

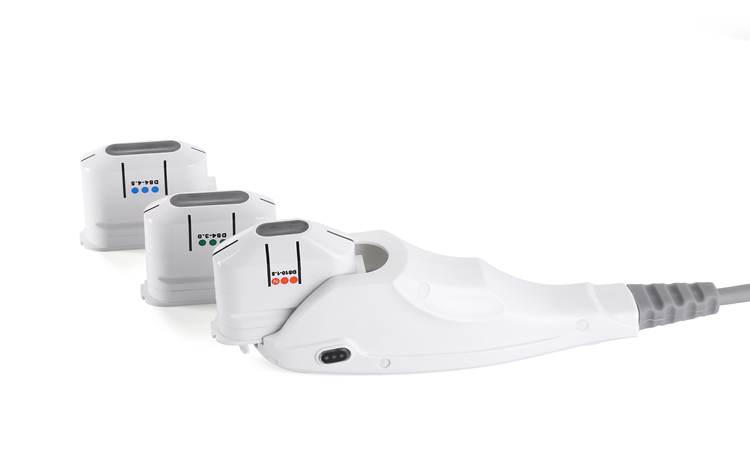

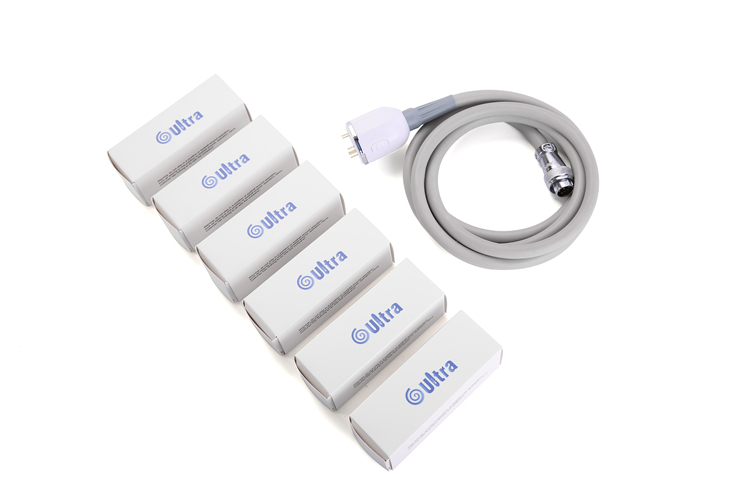

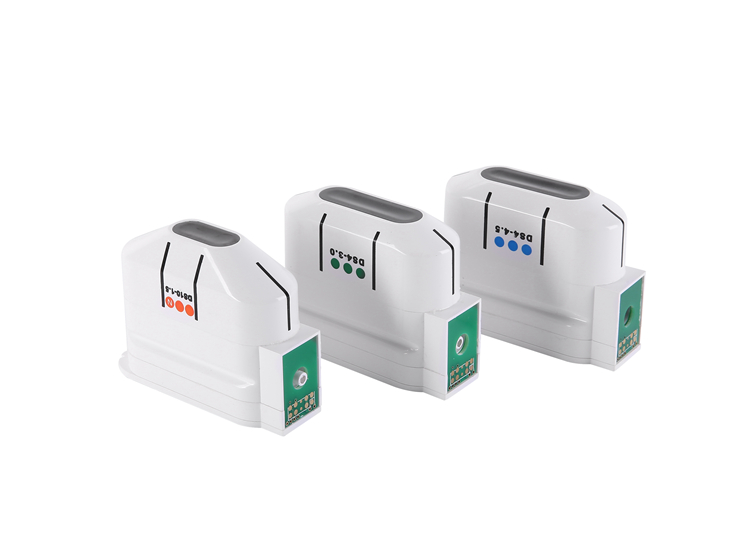

Details image show

Operation steps

Step 1: Clean your skin

Step 2: Observe the skin conditions and consider the part that need do the treatmnent. Then put some gel on the treatment part.

Step 3: Set the energy. At the beginning, energy is from the lowest, then asking customer’s feeling to add energy to the higher that they can accept;

Step 4: Use 1.5mm cartridge do treatment on forehead and eye around, use a cross operation method.

Step5: 3.0mm and 4.5mm cartridges are for face and neck, for same place, first use 4.5mm cartridge, then use 3.0mm cartridge, also use a cross operation method.

Precautions for Single point HFU

NOTE: The system automatically detects which transducer you insert and shows you on the screen.

1.1.5mm is for eye around and forehead.

Energy: 1 – 8 J

You should set from 1 and gradually turn it higher while keeping asking how the patient feels. (Usually we set 3-5J)

2.3.0mm is for face and cheek.

Energy: 1 - 8 J

You should set from 1 and gradually turn it higher while keeping asking how the patient feels. (Usually we set 5-7J)

3.4.5 mm is for cheek and neck

Energy: 1 – 8J

You should set from 1 and gradually turn it higher while keeping asking how the patient feels. (Usually we set 6-8J)

4.4.5 mm is for breast

Energy: 1 – 8J

You should set from 1 and gradually turn it higher while keeping asking how the patient feels. (Usually we set3-5J)

5.8.0 mm is for arm  and thigh

Energy: 1 – 8J

You should set from 1 and gradually turn it higher while keeping asking how the patient feels. (Usually we set 6-8J)

6.13.0 mm is for  thigh and abdomen

Energy: 1 – 8J

You should set from 1 and gradually turn it higher while keeping asking how the patient feels. (Usually we set 6-8J)

Use instructions

---Prohibit to operate on the working head

---Operate time prohibit to stay more than 2 seconds in the same area.

---Be sure to avoid eye parts during operation

---Avoid these areas:forehead,thyroid,below the ear or other nerve sites,etc.

---Moving probe in 1 second operation area about 5mm.

---Do not use on objects outside the skin, the probe may malfunction.

---Heart disease, pregnant women, diabetes, menstrual period and other patients avoid operation

Single point hfu prohibited parts

***The tooth or around the tooth area,planting tooth may have a cold toothache. At this time, you can inhale your mouth to bulge or wrap the teeth with gauze.

***Do not operate near the eyes where the nerves pass under the jaws, temples, hairline, mouth, and lips.

***The thyroid area around the neck cannot be operated.

***When make body treatment, nerves and blood vessels areas are prohibited
